Description
Manual Wheelchairs

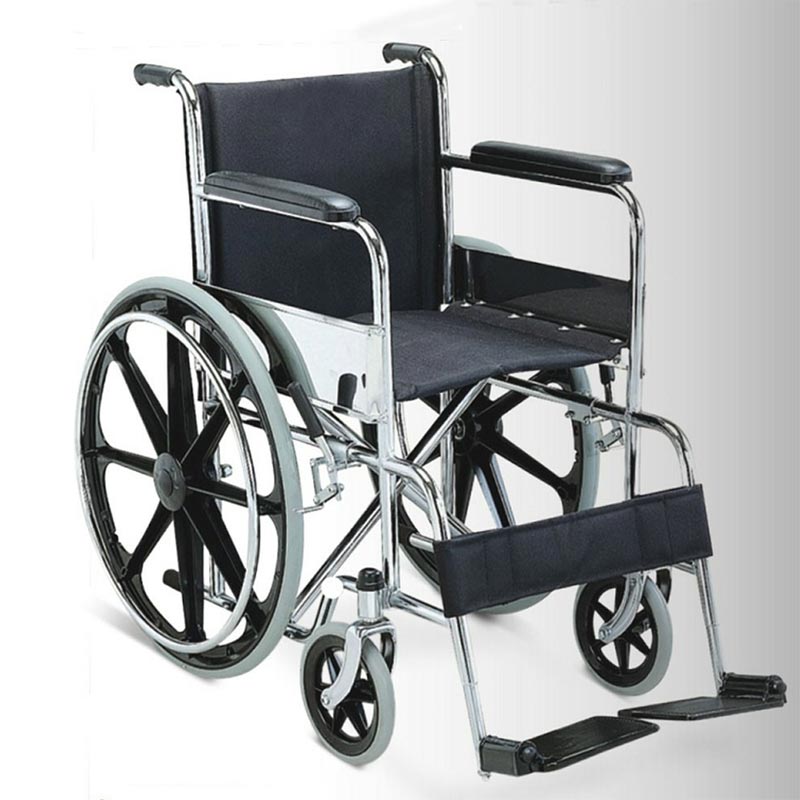

- 809B
1. Standard steel wheelchair 2. Fixed armrest and footrest ,easy to use 3. Foldable and easy to store 4. Superior comfort. Features lightweight foot plates and padded armrests with embossed vinyl upholstered seat and seat back. 5. An excellent wheelchair to have around the house and when you are out and about. Enjoy a cozier experience as you roll around in this wheelchair.
1.FRAME: made by chromed steel frame, fixed armrest and footrest.
2.Seat upholstery: blue PVC, very strong
3.Armrest: PVC armrest pad, fixed armrest, metal armrest panel
4.Castor: 8”（200mm）solid castor.
5.Rear wheel: 24”（580mm）SOLID MAG rear wheel. Steel hand rim
6.Footrest: fixed, aluminum footplate
| Name | Parameters |
| Total length | 1060mm |
| Total width | 650mm |
| Total high | 890mm |
| Fold width | 240mm |
| Seat width | 460mm |
| Seat depth | 400mm |
| Seat height off the ground | 490mm |
| Armrest height | 280mm |
| Distance between handrails | 455mm |
| Foot pedal height off the ground | adjustable |
| Backrest height | 390mm |
| Front wheel diameter | 200mm |
| Straight diameter of rear wheels | 61mm |
| Maximum load | 100kg |
| Net weight | 17.2kg |
